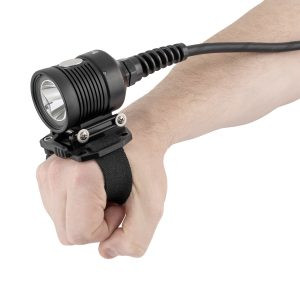

Dive Rite GX40 Primary Canister Light

$1,200.00 - $1,370.00

Serious power, streamlined profile

The Dive Rite GX40 Canister Light borrows the powerful and compact light head of the FX40 Handheld Primary Light and marries it to an all-new latchless battery canister. The GX40 delivers the same impressive 2400 lumen output and tightly focused 4 degree beam pattern as the FX40, but with up to 3X the burn time of the handheld light.  The small form factor light head practically disappears on the back of your hand when in use. The low-profile, head mounted piezo button ensures smooth operation with no moving parts. Built from CNC-machined acetal and aluminum with a hard type III anodized finish, the GX40 boasts a depth rating of 500 feet (152 meters).

The streamlined latchless canister incorporates a bayonet-style locking ring system. To disengage the lid for charging, simply depress the locking pin, rotate the ring 30 degrees, and then pull the lid straight off. The GX40 is offered with two different battery canister sizes and each is available with either a straight or 70 degree angled cord lid. The light includes a soft elastic handmount plate with QRM mounting system, battery charger, and a padded carrying bag. Made in the USA.

The Dive Rite GX40 Canister Light borrows the powerful and compact light head of the FX40 Handheld Primary Light and marries it to an all-new latchless battery canister. The GX40 delivers the same impressive 2400 lumen output and tightly focused 4 degree beam pattern as the FX40, but with up to 3X the burn time of the handheld light.  The small form factor light head practically disappears on the back of your hand when in use. The low-profile, head mounted piezo button ensures smooth operation with no moving parts. Built from CNC-machined acetal and aluminum with a hard type III anodized finish, the GX40 boasts a depth rating of 500 feet (152 meters).

The streamlined latchless canister incorporates a bayonet-style locking ring system. To disengage the lid for charging, simply depress the locking pin, rotate the ring 30 degrees, and then pull the lid straight off. The GX40 is offered with two different battery canister sizes and each is available with either a straight or 70 degree angled cord lid. The light includes a soft elastic handmount plate with QRM mounting system, battery charger, and a padded carrying bag. Made in the USA.

TECH SPECS

Weight (Expedition Canister) 3 lbs, 13 oz (1.7 kg)
Weight (Short Canister) 3 lbs (1.36 kg)
Dimensions (Light Head without Gland) Diameter: 2 in (5.08 cm)
Length: 2.61 in (6.6 cm)
Dimensions (Expedition Canister without Gland) Diameter: 2.5 in (6.35 cm)
Diameter (Locking Ring): 2.7 in (6.9 cm)
Length: 11.4 in (30 cm)
Dimensions (Short Canister without Gland) Diameter: 2.5 in (6.35 cm)
Diameter (Locking Ring): 2.7 in (6.9 cm)
Length: 8.8 in (22.35 cm)
Lid Type Straight or 70° options available
Length (Cord) Straight Lid: 4 ft (1.2 m)
70° Lid: 5 ft (1.5 m)
Material Light Head: CNC machined aluminum with hard type III black anodizing
Battery Canister: CNC machined acetal
Depth Rating 500 ft (152 m)
Max Output 2400 lumens
Beam Angle
LED Luminus SFT40
Reflector Fixed focus, smooth
Activation Simple, head-mounted piezo button
Light Color Temperature 5000 K
Batteries Expedition Canister: 16.8V 10.2ah pack comprised of 3 4-cell 18650 packs
Short Canister: 16.8V 6.8ah pack comprised of 2 4-cell 18650 packs
Charge Type Custom 4 pin charging block
Charge Block Type 16.8v 3A Smart Charger
Charge Time Expedition Canister: 4 hours
Short Canister: 3 hours
Mount Soft elastic hand mount plate with QRM mounting system (included)

BURN TIMES (EXPEDITION CANISTER)

Turbo 4.5 hrs
High 10 hrs
Medium 22 hrs
Low 112 hrs

BURN TIMES (SHORT CANISTER)

Turbo 2.8 hrs
High 6.7 hrs
Medium 16 hrs
Low 74 hrs
