Symbios CCR Pod

CCR Pods are available with Fischer, 4-pin, and 5-pin connections, including male and female options for different rebreather configurations. Choose the connector designed for your CCR and pair the Pod with a Symbios Silver Handset, HUD, or both. This configuration-based approach extends the Symbios ecosystem's flexibility to a wider range of closed-circuit rebreathers.

Specs:

Symbios CCR Pod At a Glance

Wireless CCR Data
Transmits real-time rebreather data to the Symbios Silver Handset and HUD.

Individual Cell Readings
Displays the pO₂ reading from each connected oxygen sensor.

Analog and CAN Bus Options
Available for compatible analog rebreathers and CAN bus systems.

One-Second Transmission
Updates transmitted CCR data once every second.

Specifications

General

• Wireless connection between compatible CCRs and Symbios dive computers
• Compatible displays: Symbios Silver Handset and Symbios HUD
• Wireless magnetic transmission
• Transmission frequency: 125 kHz
• Transmission interval: Once per second
• Transmission range: Up to 90 cm / 35 in
• Dimensions: 90 mm / 3.5 in long × 40 mm / 1.6 in diameter
• Weight: Approximately 110 g / 3.9 oz
• Available for analog and CAN bus rebreather systems

Fischer and AK4 Analog Versions

• Compatible with rebreathers using a 7-pin Fischer or AK4 connector
• Connects to up to three analog pO₂ sensors
• Compatible sensor output: 8–15 mV at 0.21 bar pO₂
• Compatible with Halcyon GREENFLASH optical pO₂ sensors set to analog mode
• Battery: CR123 lithium
• Battery life: Up to 200 diving hours
• Standby time: Up to one year
• Automatically enters sleep mode after more than 15 minutes of stable sensor output

AK5 CAN Bus Version

• Designed for compatible CAN bus rebreathers with an AK5 connector
• Typically connects through the CCR’s HUD port
• Powered by the CCR head battery
• Required CAN bus supply voltage: 3.3–4.3 V
• Activated through integrated water contacts
• Enters standby mode when the contacts are dry
• Wirelessly transmits the pO₂ reading from each cell

Available Configurations

• 7-pin Fischer — 80.300.001

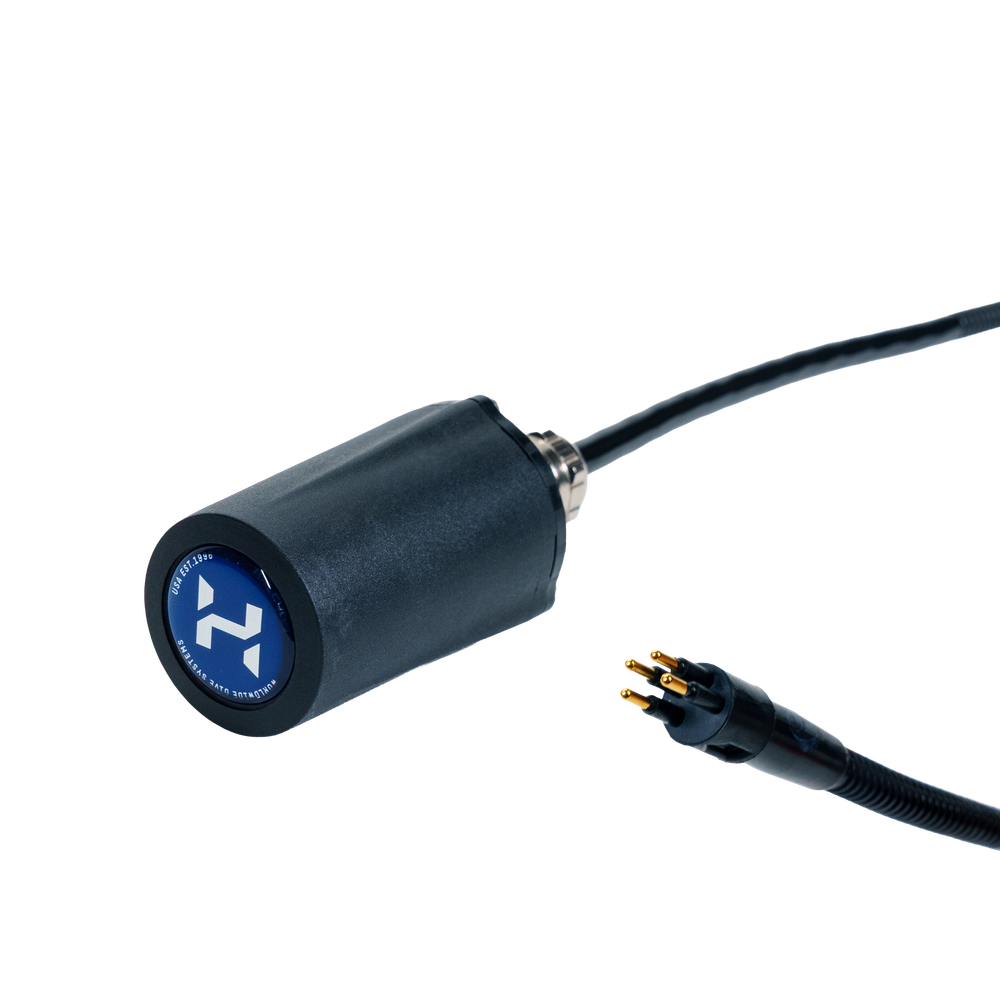

• 4-pin male — 80.300.009
• 4-pin female — 80.300.010

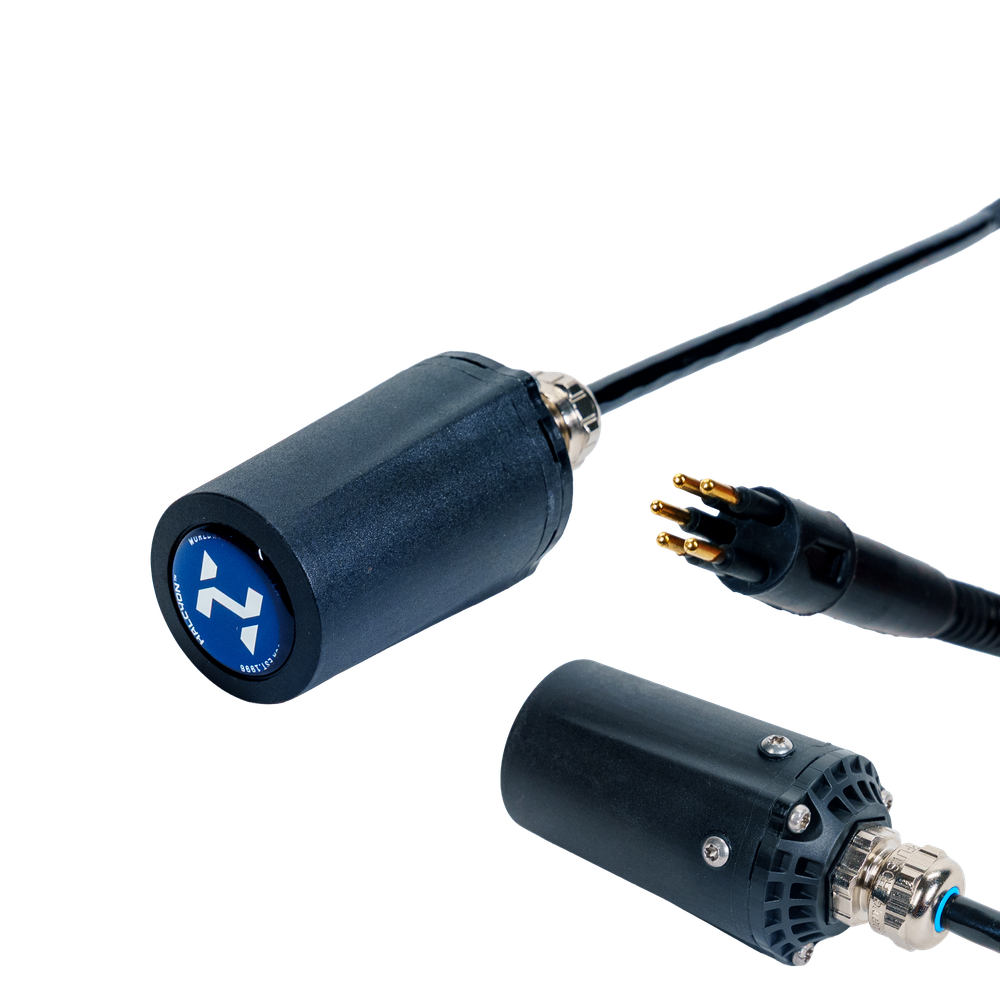

• 5-pin male — 80.300.011
• 5-pin female — 80.300.012
