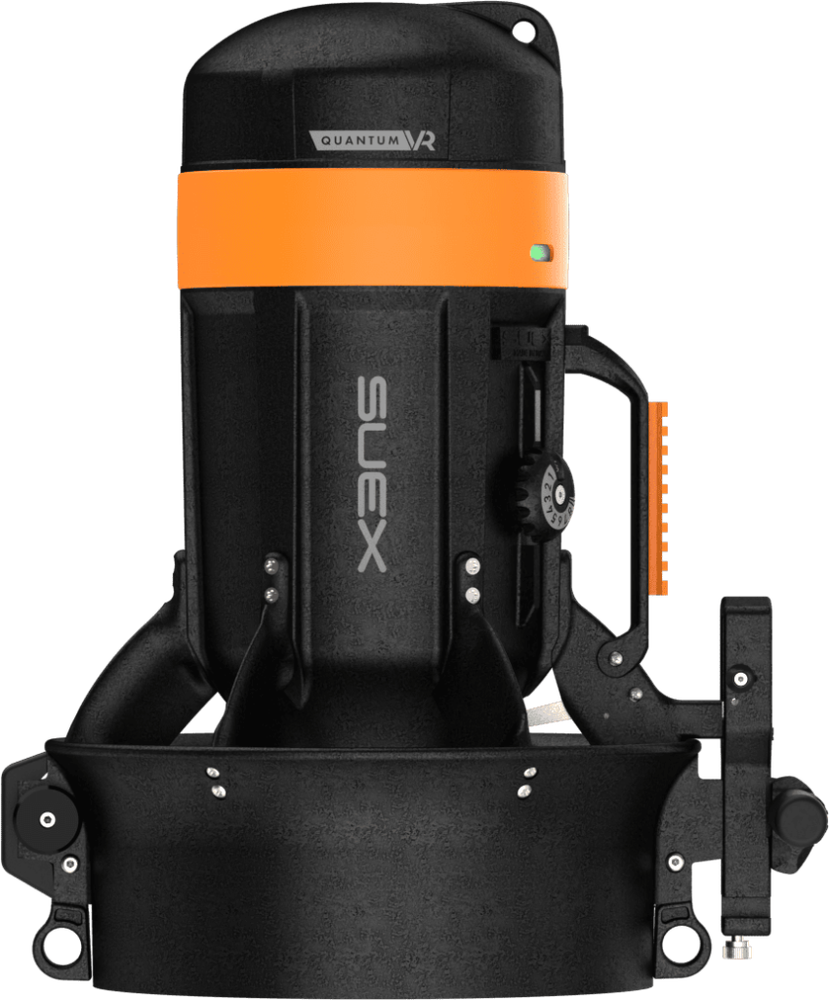

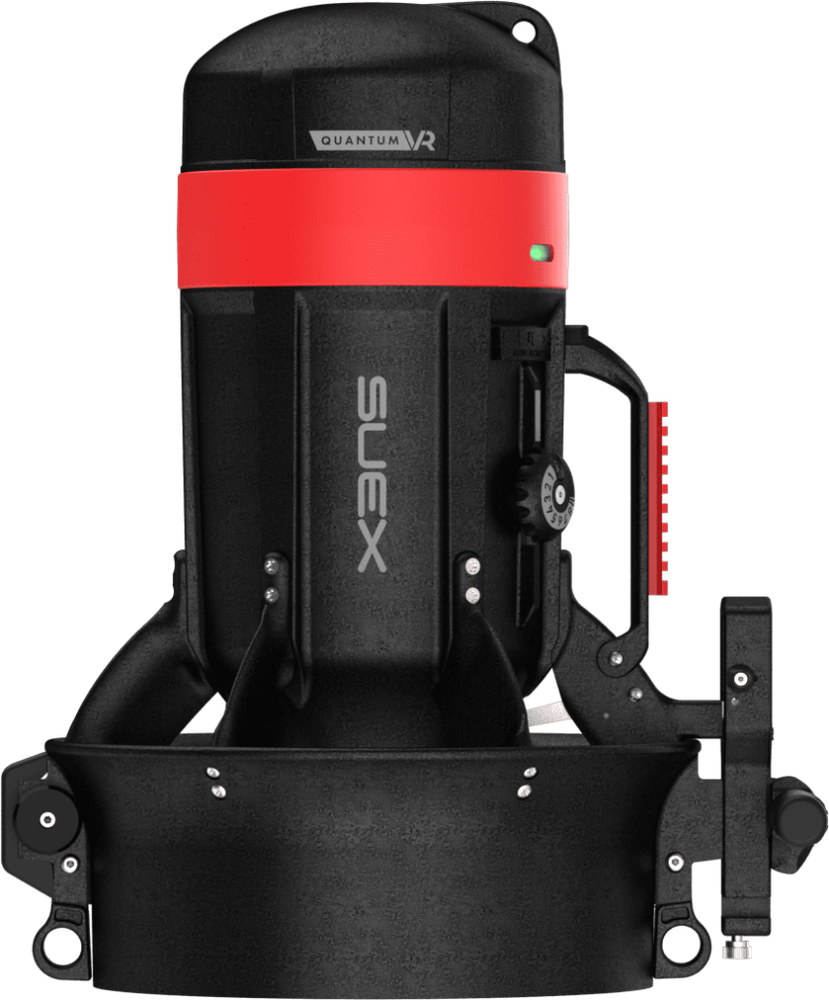

Suex Quantum VR

The top-of-the-line DPV designed for advanced recreational divers, technicians, and professionals who need maximum power and autonomy.

NEW POWER

The batteries of the NEW VR SERIES represent a technological revolution, offering:

• Superior performance with high-quality cells.
• Advanced safety through the Suex-designed Battery Management System (BMS).
• Exceptional durability, tested according to UN38.3 protocols.

Compact yet powerful, these batteries feature smart functionalities such as auto-off and sleep-mode, extending battery life and maximizing efficiency.

MAXIMUM POWER AND RANGE

The VR QUANTUM is perfect for technicians and professionals requiring top-tier performance. Key specifications include:

• Battery pack: 585.7 Wh.
• Dive time: Up to 220 minutes at cruising speed.
• Range: 10 km total distance.
• Maximum speed runtime: 90 minutes.

MOTOR MAPPING

The NEW VR SERIES offers advanced motor mapping with two customizable modes:

• SPORT mode: Delivers maximum performance.
• ECO mode: Optimizes energy efficiency and extends battery life.

These modes ensure a tailored underwater experience.

NAUTILUS CONCEPT

Years of research and development have resulted in the Nautilus Concept, which enhances:

• Stability and trim during operation.
• Thrust, autonomy, and quietness through cutting-edge design elements.

This synergy provides an unparalleled navigation experience.

MODULARITY

The NEW VR SERIES allows for complete customization. Components such as the nose (battery housing), the ring, and the colored handle can be easily swapped to suit the specific needs of any dive.

8-SPEED LEVELS REGULATOR

Featuring an 8-level speed regulator and two engine modes:

• SPORT mode: Ensures maximum performance.
• ECO mode: Extends battery life and optimizes energy efficiency.

EXTERNAL CHARGING & LED LIGHT INDICATOR

All models of the NEW VR SERIES include:

• External charging with an integrated LED indicator for real-time charge status.
• LED light feedback during dives: Green when operational, red when the battery is low.

DOUBLE HANDLE & CRUISE CONTROL

Equipped with:

• Dual ergonomic handle: Ensures maximum stability and ease of transport.
• Integrated cruise control: Maintains a constant speed for optimal, controlled diving.

ADJUSTABLE WATER BALLAST

An adjustable ballast system with a removable disc allows for:

• Use in saltwater (disc applied).
• Use in freshwater (disc removed).

This ensures perfect buoyancy under varying conditions.

CUSTOMIZATION

A standout feature of the NEW VR SERIES is its color customization. Divers can switch the body ring and Picatinny mount from the standard black to one of six available colors.

CARRYING STRAP

A specially designed shoulder strap is included with all models, making it easier to transport the DPV out of the water by better distributing the load.

PACKAGE INCLUDES:

• Scooter
• Strap
• Divelift
• Smartlock

TECHNICAL SPECIFICATIONS

Use: Advanced recreational divers, professionals, technicians
Length: 510 mm (20 inches)
Width: 340 mm (13.4 inches)
Height: 422 mm (16.6 inches)
Body Diameter: 200 mm (7.9 inches)
Weight Without Battery: 8.5 kg (18.7 lbs)
Weight With Battery: 11.7 kg (25.8 lbs)
Body Material: Technopolymers / Polycarbonate
Max. Static Thrust: 220 N (45 lbs)
Max Speed: 70 m/min (230 ft/min)
Maximum Operating Depth: 100 m (328 ft)
Buoyancy / Trim: Neutral trim and buoyancy
In-Water Usage Temperature: -5°C to +35°C (23°F to 95°F)
Autonomy (Max Speed): 90 minutes
Autonomy (Cruising Speed, 45 m/min): 220 minutes
Type of Batteries: Li-ion
Nominal Voltage: 25.2 V
Nominal Capacity: 587.7 Wh
Battery Charger Power Supply: 100/220 V, 50/60 Hz
External Power Connector: Yes
Integrated Cutoff: Yes
Bluetooth Connectivity (Engine): Yes

For further details, refer to the Manual or the Technical Sheet.
